Plates Capture Software

Using a camera system to capture images, MetroID PlanCAPTURE automatically detects plates on the table.

  • Automatic detection of plates.
  • Detection of stainless and mild steel plates.
  • Save plates in DWG format.
  • Edit plates manually.

MetroID PlanCAPTURE detects plates on a table, or plates scraps to reduce the waste of material. This software can interact with a robot system, or cnc machine, to move around the table and capture multiple images.

Main features:

  • Automatic detection of plates or plate scraps.

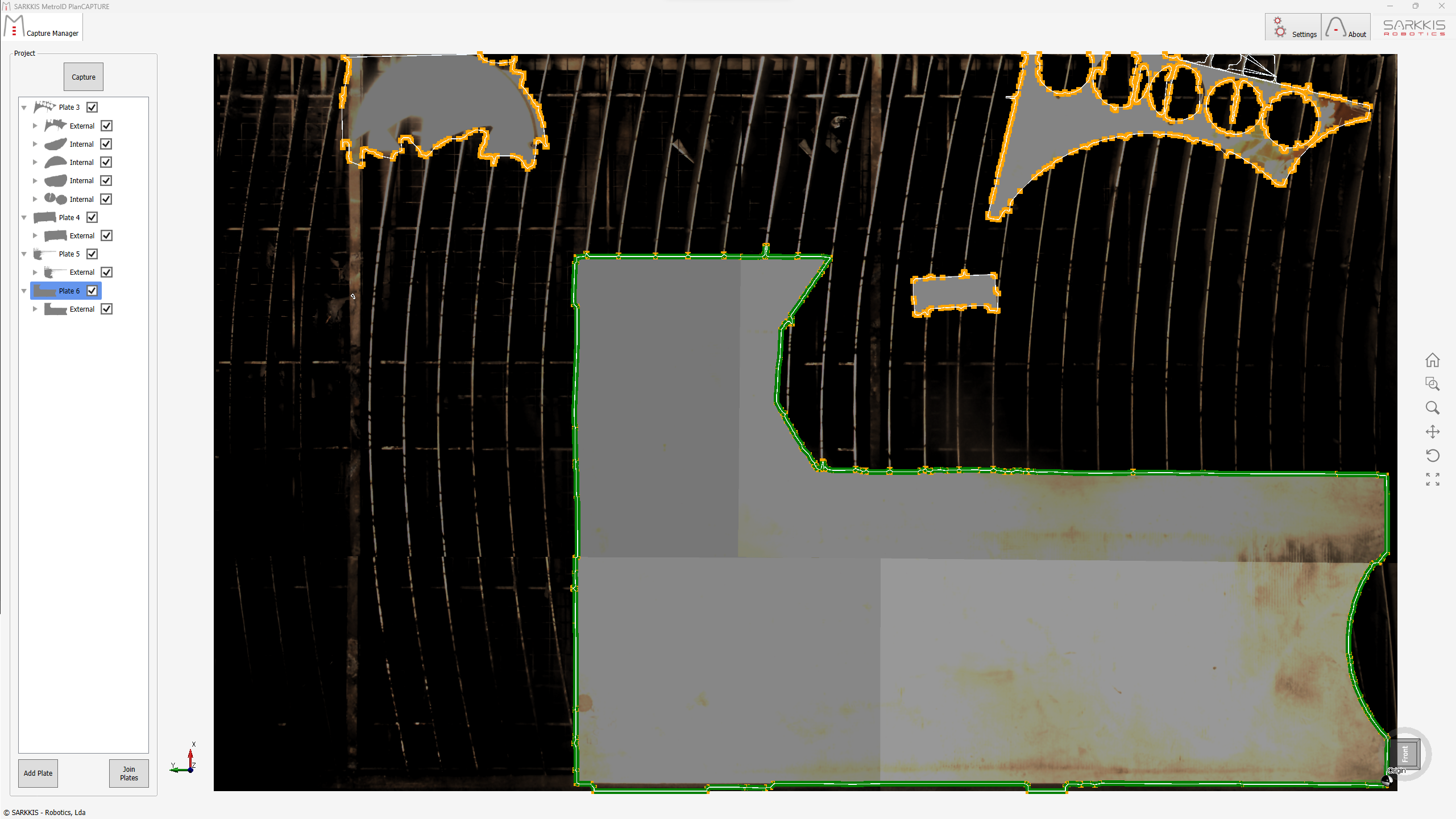

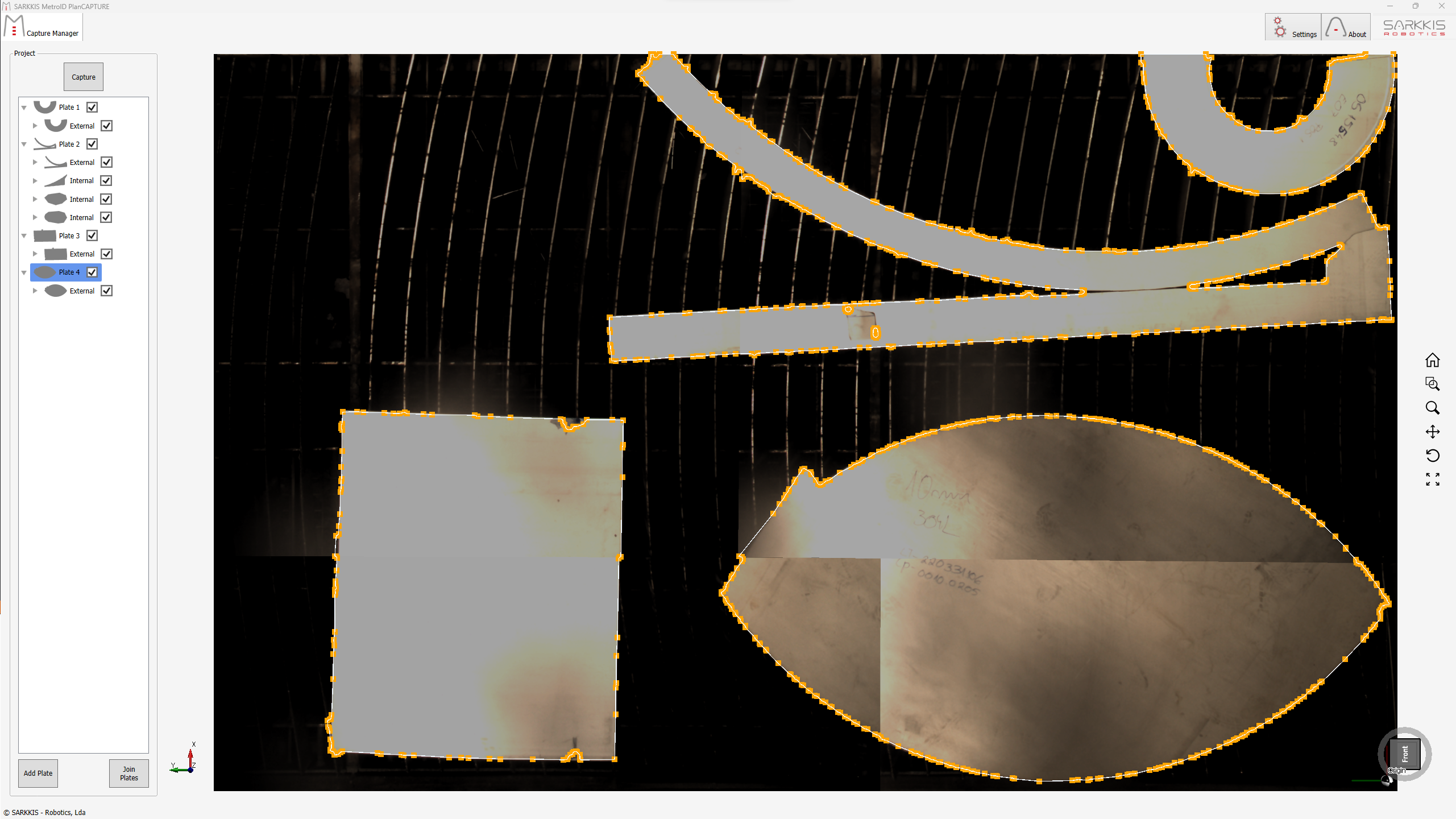

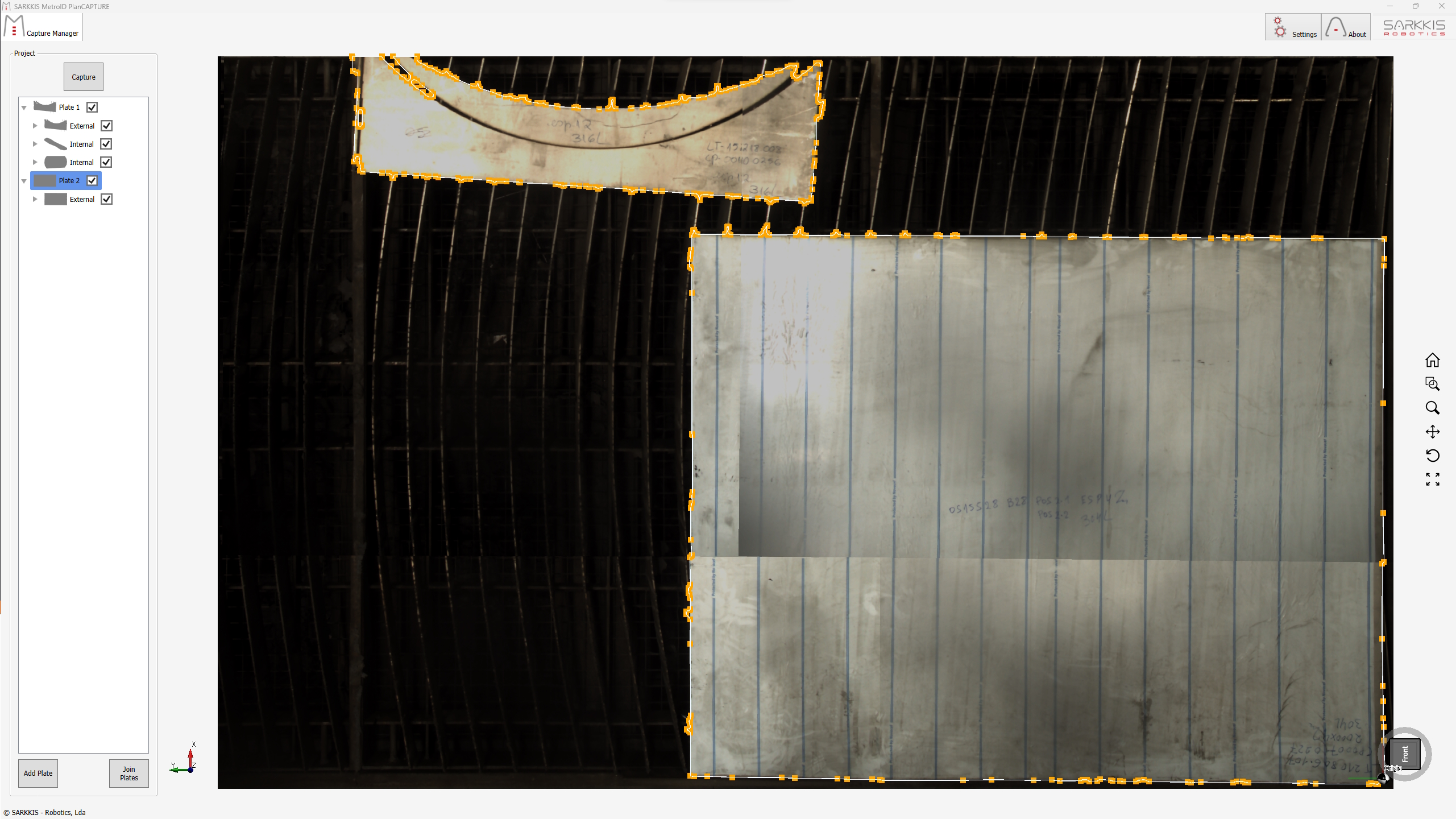

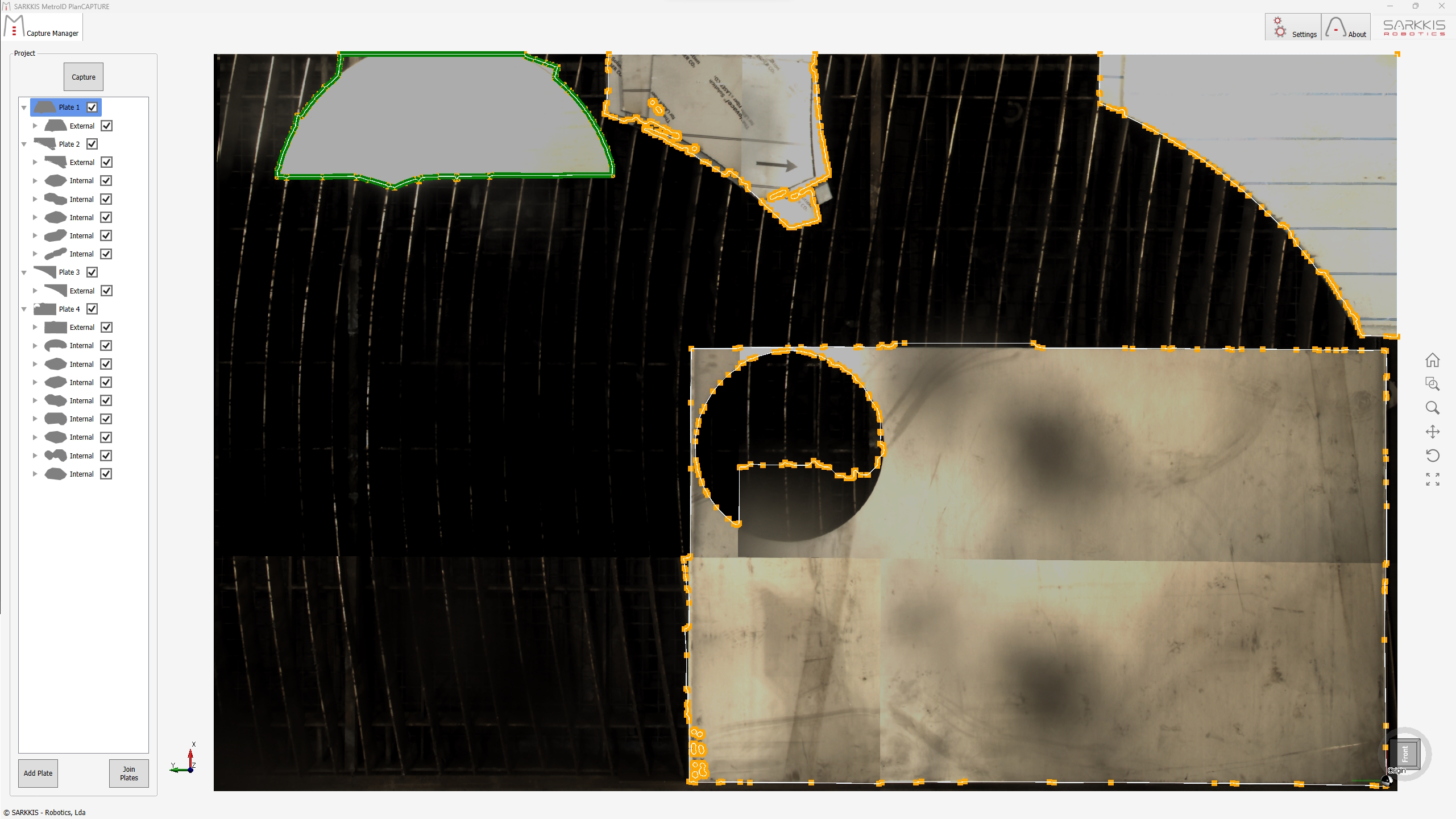

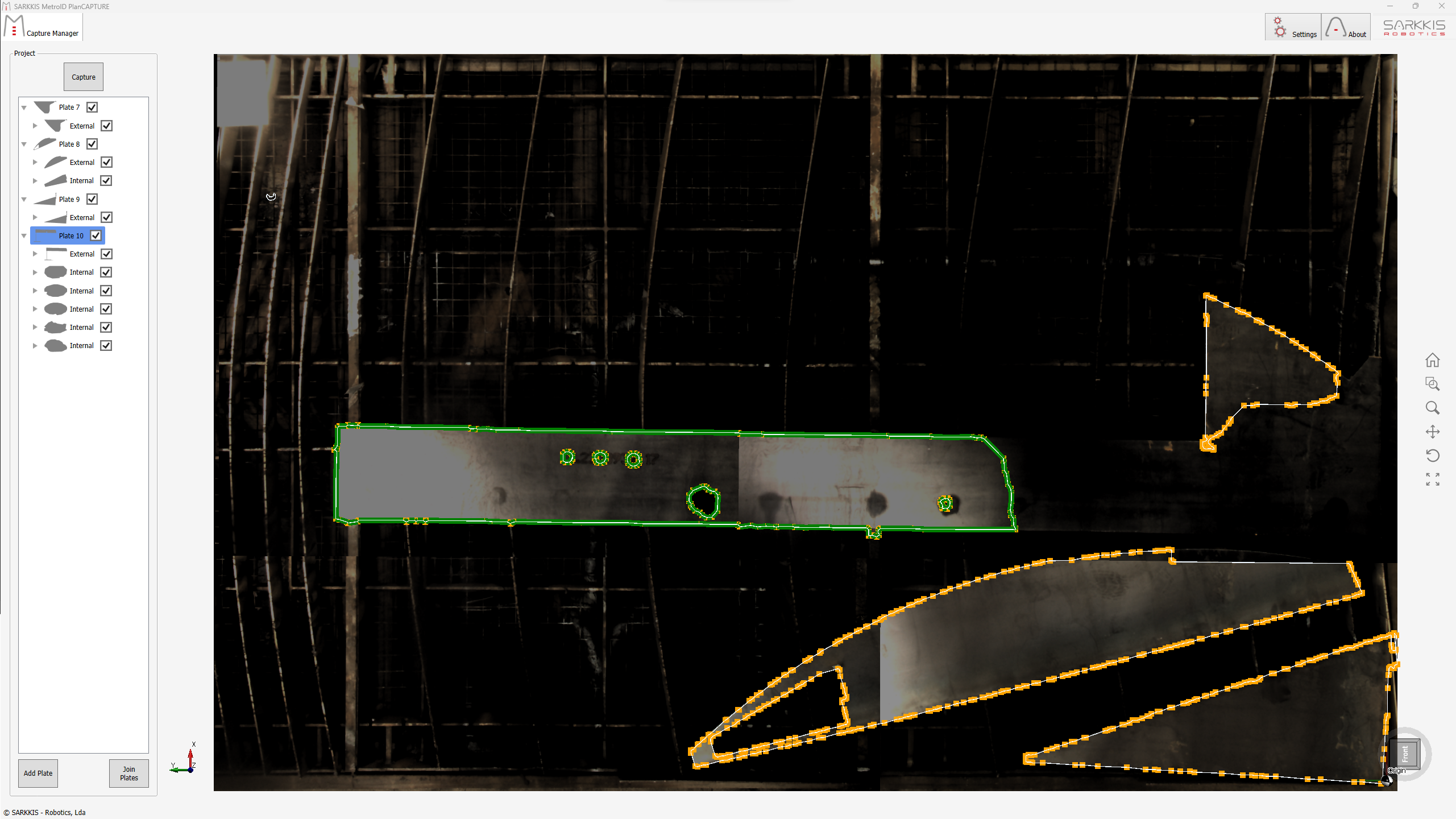

  • 2D Visualization of the contours of the plates found.
  • Commands to edit, add or remove contours.
  • Store the plate contours in DWG format.
  • Possibility to integrate with robot system or CNC machine to increase working area.
  • Multilanguage user interface.
